Metal Fabrication Services -- Plate Forming Crimping Corrugating CNC Plasma Cutting Plate Rolling
650 ton 20' Pacific Press
300 ton 12' Pacific Press
(2) 5 ton overhead cranes

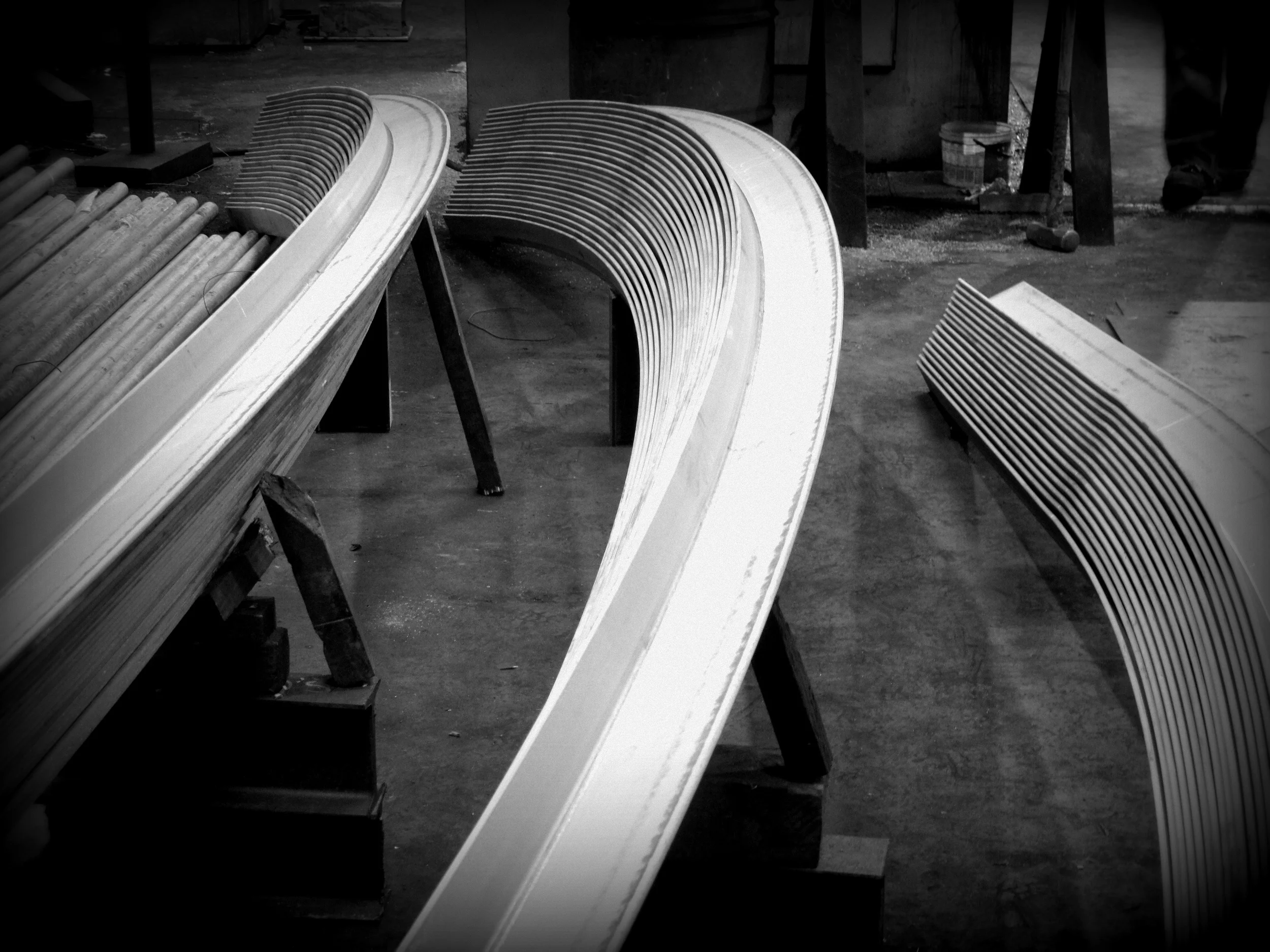

Heavy Plate forming up to 4" (depending on width)
Forming specialty grades including AR400 and T1
Corrugating / Crimping
V-Crimps / Round Bottom V-Crimp Plates
Flat Bottom Crimp Plates
Thickness up to 3/8" using crimp dies, Heights to 18', Widths to 40'
Custom Corrugations per Detail -- Accommodating crimp / corrugated bulkhead details up to 1" in thickness or corrugation patterns with custom opening, bottom, and depth requirements. Max width is 160" pre-formed length.

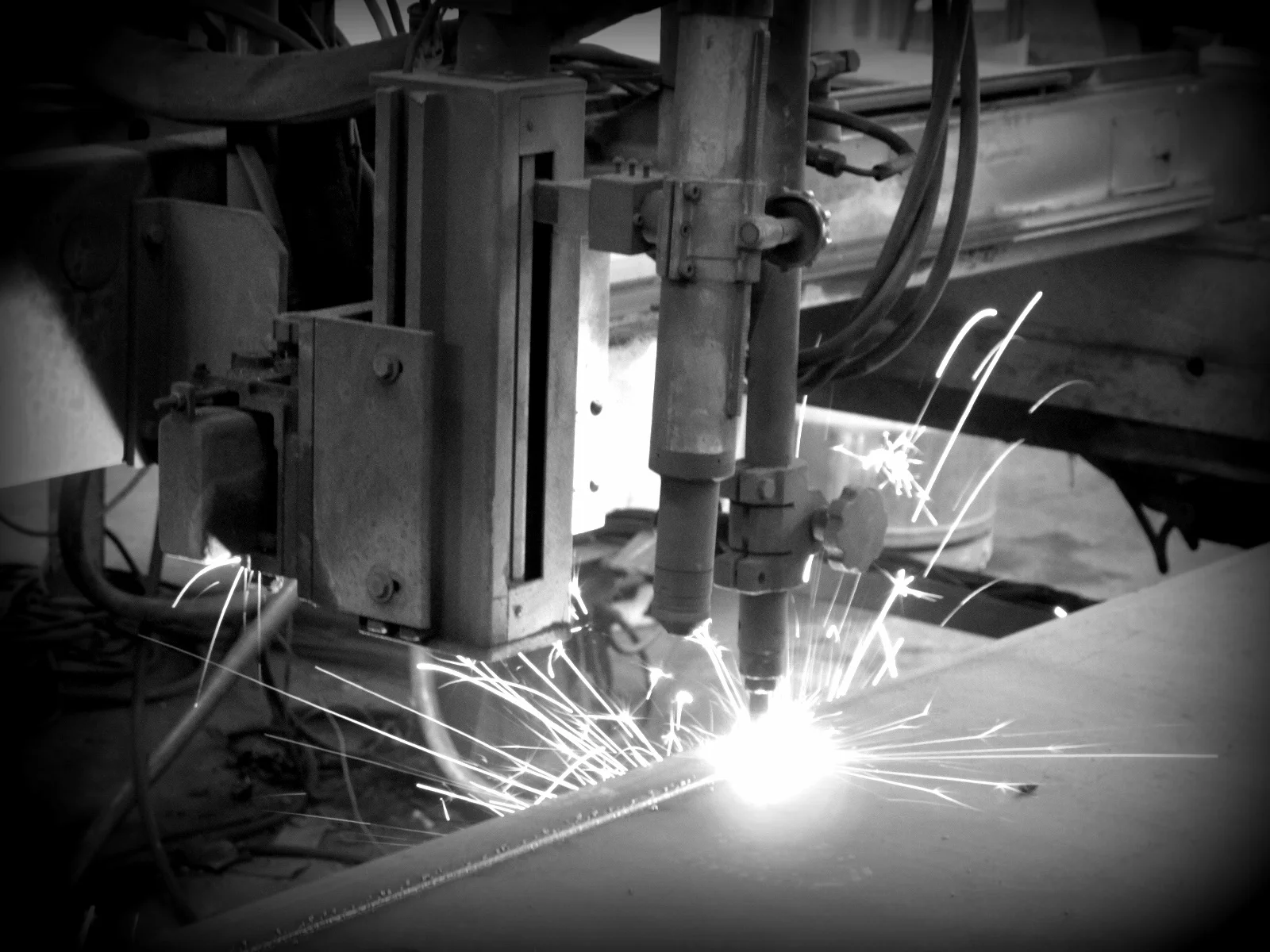

CNC Oxyfuel Cutting
Plate Thicknesses up to 4"
Full nesting capabilities.
Cut Per .dxf or .dwg file
Cut and programmed per Drawing/Sketch
Programmed and cut per furnished Sample
CNC Plasma Cutting
10'x40' Cutting Area powered by Hypertherm MaxPro 200
Plate Thicknesses up to 1-1/4" on carbon steels; 3/4" on stainless steels (304, 316)
